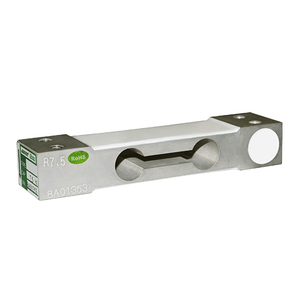

JL-01 Load cell
Features
- For table scale
Product more pictures
Specifications
|
Model |
JL-01 |
Model |
JL-01 |
|
|
Rated Capacities(kg)
|
3,5,6,7.5,10,12,15,20,30,35,40 |
Output Impedance |
350±5 Ω
|
|
|
Rated Output |
2.0 mV/V±10% |
Insulation Impedance |
≥5000 MΩ |
|
|
Non-linearity |
0.02 %F.S |
Safe Overload |
150 %F.S |
|
|
Hysteresis |
0.02 %F.S
|
Ultimate Overload |
200 %F.S |
|
|
Repeatability |
0.02 %F.S
|
Operating Temperature Range |
-20~60 ℃ |
|
|
Creep(20min)/DR |
0.02 %F.S
|
Recommended Excitation |
5~12 VDC |
|
|
Temperature Effect On Output |
0.002 %F.S/℃
|
Maximum Excitation |
15 VDC |
|
|
Temperature Effect On Zero |
0.003 %F.S/℃
|
Construction |
Aluminum Alloy |
|
|
Zero Balance |
±0.0200 mV/V |
Protection Class |
IP67 / IP68 |
|
|
Input Impedance |
410±15 Ω |
Cable |
φ4×45 cm |
|
|
Mode of Connection |
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-） |
|||
